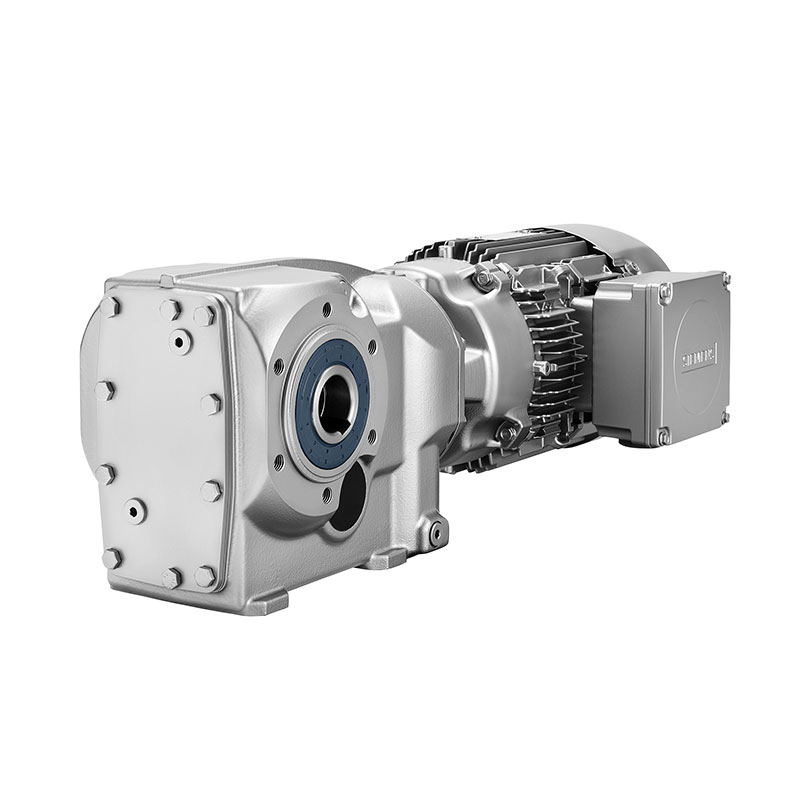

INNOMOTICS Helical Bevel Geared Motors
- Can be used even in narrow construction space
- High gear ratios
- Very energy efficient (efficiencies of 98% per stage)
- High Torque
- Best IEC Adaptor
- High power density
Mechanical Construction
- Stages: 2-3
- Mounting: foot or flange-mounting versions, torque bracket
- Shaft: Solid shaft, Hollow shaft
Typical Applications
- Baggage conveyor
- Transport of packaged goods
- Rope lifter (Warehouse logistic)
- Carriage drives
- Mixers
Technical Data
| Helical Bevel Geared Motors 2-stage | Helical Bevel Geared Motors 3-stage | |
|---|---|---|
| Gear Title | B19 … B49 | K39 … K189 (3-stage) |
| Sizes | 4 | 10 |
| Torque Range [Nm] | 50 … 450 | 220 … 19.500 |
| Ratio | 3.6 … 59 (2-stage) | 5,7 … 244 (3-stage) 170 … 34.345 (multi-stage) |
| Motor Power Range [kW] | 9,2 | 55 |
